Duct Modification & Re-Routing in Dubai
Duct modification and re-routing for office fit-outs that don't match the original AC zoning, tenant changes that need new branches, layout changes during renovation, and HVAC system expansion. In-house duct workshop fabricates the new sections to spec. System re-balance after modification is included.
AC duct re-routing, and when modification beats replacement
Most AC duct modification jobs start the same way. A partition went in, a zone got split, a tenant took half a floor, or a room was created that the original AC duct layout never knew about. The ducting is sound. It is simply in the wrong place, feeding the wrong shape of room.
Modifying is usually the cheaper and faster route, and there is one honest exception. If the existing run is already at the limit of what it can carry, adding a branch does not create air, it borrows it from the rooms already on the run. We check the capacity of the existing trunk before we agree to tap into it, and if the answer is that the run cannot carry another zone, we say so rather than adding a branch that quietly starves the rooms next door.
Neighbouring jobs, so nobody books the wrong one. Brand new runs are AC duct installation. Sections fabricated to your own drawings are AC duct manufacturing. If the ducting is fine and the complaint is dust or smell, that is AC duct cleaning.
Recent duct installation work by Samra
Real Samra duct installations across Dubai — sheet-metal fabrication, hang and support, sealing, insulation and commissioning.
What we modify
Common modifications, re-zoning of existing runs and brand-new branch additions. New sections fabricated in our own workshop in 1–3 working days.

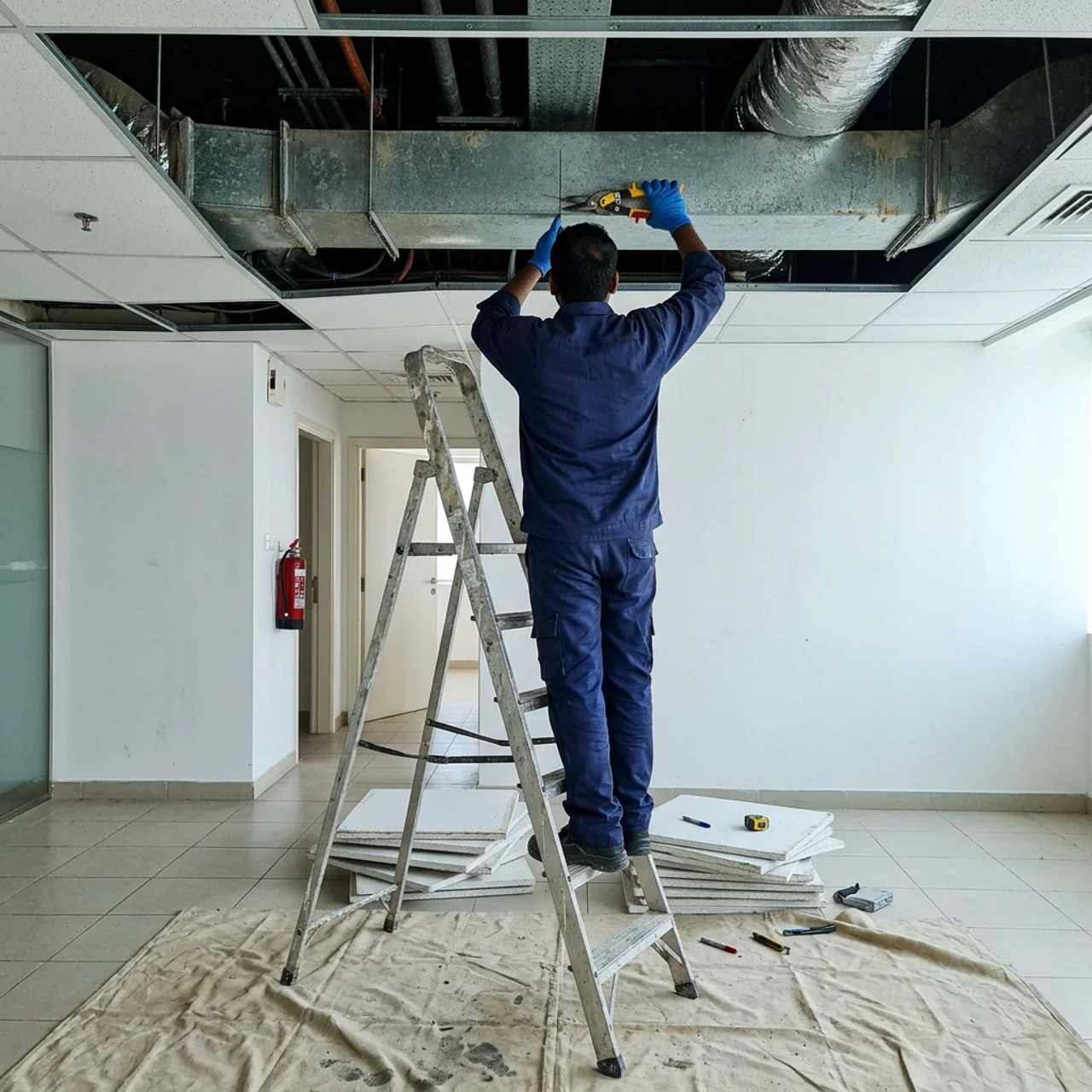

Re-route around new partitions
Moving a duct run during office fit-out to clear a new partition wall, glass front or feature element without compromising airflow.
Add a branch to a new zone
New tap-off from existing supply duct to serve a new room or zone, with VCD and access door. Sized to existing trunk capacity.
Remove a redundant branch
Removing a branch from a wall being demolished, capping cleanly at the trunk and re-balancing the remaining system.
Re-zone an existing run
Adding VCDs to split one run into multiple zones, adding VAV or CAV terminal boxes for variable load, re-tying tenant zones during sub-leasing.
Replace a damaged section
Replacing corroded, leaking or impact-damaged duct sections with newly fabricated matching gauge and dimensions. Same-day for small scope.
Upgrade for new load
Upgrading duct gauge, dimensions or insulation when an HVAC load increase or system change pushes the existing duct beyond spec.
Re-balance and commissioning
Air balance with calibrated anemometer, damper position documentation, before/after airflow readings at every affected diffuser, balancing report.
Why re-balance after modification matters
Most duct modifications change the system's pressure profile. Without re-balancing, the modified branch will be under- or over-supplied — and other rooms on the same trunk will be affected too. Most post-modification complaints trace back to a contractor who didn't re-balance.
Pressure profile shifts
Adding or removing a branch changes static pressure across the whole trunk. Untouched rooms get more or less air than they used to.
Calibrated readings
We take before/after airflow readings at every affected diffuser with a calibrated anemometer — not visual or audible checks.
Documented dampers
Final damper positions are documented so future modifications start from a known state, not a guess.
Handover-ready report
Balancing report shared with the building MEP team or landlord so the modification is signed off cleanly.
Flexible duct on a modification, and why the offcut matters
On a modification the flexible tails are the part most likely to be reused, and reuse is where airflow quietly disappears. A tail that was the right length for the old grille position is too long for the new one, and the surplus ends up looped in the void rather than cut. Every loop is a bend, every bend is resistance, and the room reads as short of air on the balance sheet afterwards for a reason nobody can see. When we move a terminal we cut the tail to the new length, pull it taut between the two connection points, support it with straps wide enough not to pinch the helix, and clamp and seal both collars. The re-balance in the section above then measures a run that is actually the shape the drawing assumed. The full treatment of where flexible duct belongs and where it does not is on the duct works hub and duct installation.
How we price duct modification
Fixed-price written quote after site survey or against your existing drawings. Re-balancing and commissioning report included in the quote — not an extra.
Indicative price brackets
- Single branch addition or removal: AED 1,500–5,500
- Re-routing existing duct (per linear metre): AED 250–650
- Re-zoning with VCD addition: AED 2,500–8,500
- Office fit-out duct modification (2,000–5,000 sqft): AED 8,500–35,000
- Re-balance and commissioning report: AED 2,500–12,000
6-month workmanship warranty
Joint failures, seam splits and modification errors traceable to our work are covered for 6 months. Covers labour and remake. Manufacturer warranties on dampers and equipment pass through to you directly — 1 to 10 years depending on the product.
Areas we cover
Same-day reach across Dubai. Tap your area for landmarks, communities and the services we deliver there — or tell us your building on WhatsApp.
Get a duct modification quote
WhatsApp existing drawings and a description of the change you need. For larger scope we book a site survey. Quote back within 2–5 working days, including re-balancing.
